Curly Carob with Ebony collar
Paul Porter

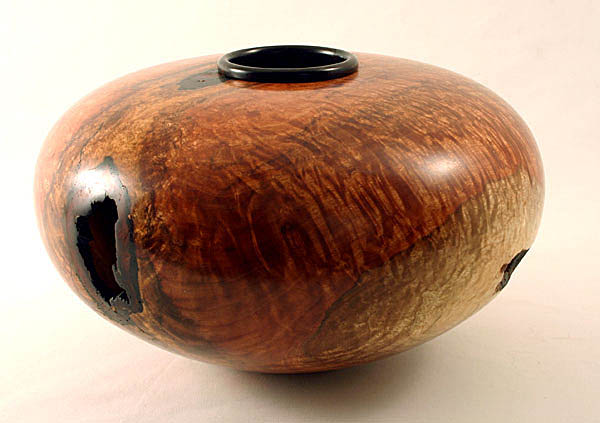

Curly Carob with Ebony collar

This Carob tree was awesome. I have never seen another like it. It had this amazing figure throughout the whole tree.
Paul, you posted some really beautiful pieces. This is gorgeous. Your form is outstanding and the collar is simple, yet elegant and doesn't take over the piece. The figure in that carob is wonderful. Can you describe how you turned and attached the collar?

Pam

Thanks for the nice comments Pam. The collar is a ring with a rabbet. I hold the wood with a four-jaw chuck, turn the rabbet to fit the opening. I make the depth of the rabbet the same as the wall thickness of the vessel so it looks like the collar raps around the inside of the vessel. I shape, sand and polish the lower (inside) edge. Part it off and gently hold it by the rabbet in the chuck, shape, sand and polish the top edge. I spot glue it on with thick CA or quick-set epoxy. If this is to confusing, email me privately and I'll send you some photos of the process. paulporterwoodturning@mindspring.com

Thanks for the description, Paul. Sounds pretty clear. You must have a very light touch working that close to the chuck :)

Yes, I've learned to pay real close attention to what I am doing and use miniture tools. My favorite tool for this job is a Sorby 1/8 inch gouge. I also use a lot of masking tape on the chuck to keep any sharp edges from catching.

Phil,
I wont be in Orlando in July, but I'll be in Provo next week.
